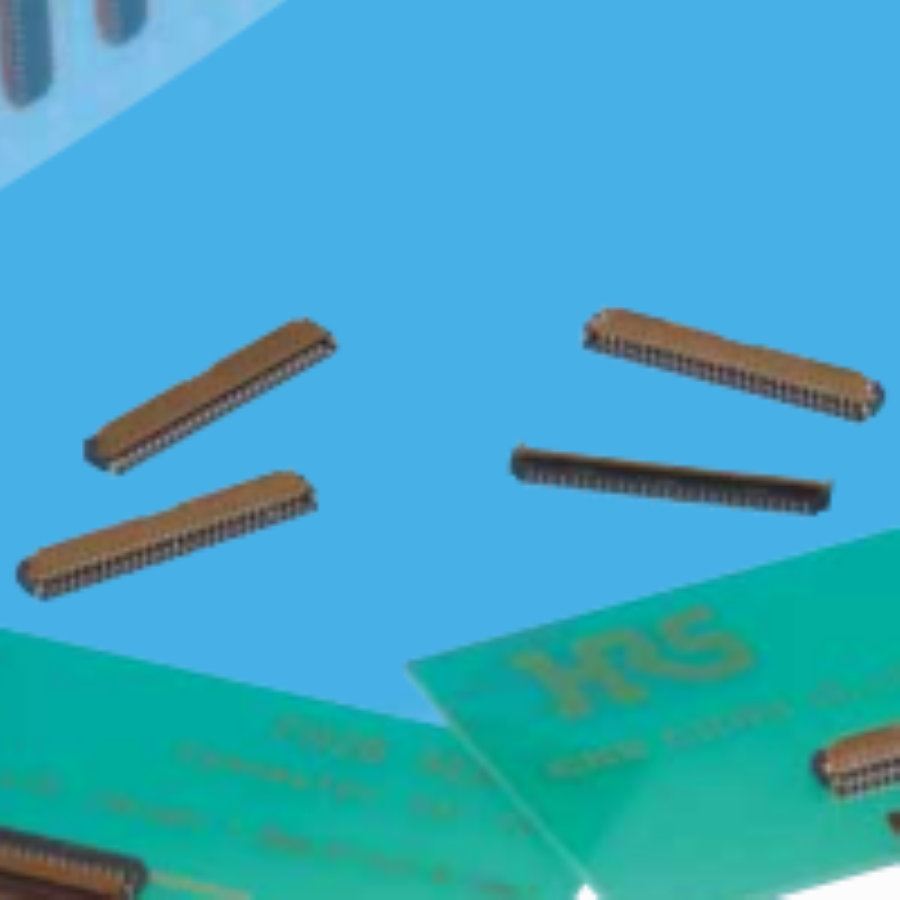

FH26W-13S-0.3SHW(60)
Manufacturer:
Hirose Electric
Mfr.Part #:
FH26W-13S-0.3SHW(60)
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:13 200 mA 30 V
| Parameter | Value |
|---|---|
| Length | 5.4 mm |
| Width | 3.5 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 13 |
| Height | 1 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 304.8 µm |
| Current Rating | 200 mA |
| Flammability Rating | UL94HB |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Gender | Receptacle |
| Connector Type | Receptacle |
| Number of Positions | 13 |
| Housing Material | Polymer |
| Contact Resistance | 100 mΩ |
| Actuator Material | Nylon, Polyamide |
| Contact Voltage Rating (AC) | 30 V |
| Contact Voltage Rating (DC) | 30 V |
| Contact Pitch | 0.3 mm |
Stock: 1821
Distributors
pcbx
pcbxUnit Price$1.08918
Ext.Price$1.08918
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.08918 | $1.08918 |
| 10 | $0.94470 | $9.44700 |
| 25 | $0.90708 | $22.67700 |
| 50 | $0.88827 | $44.41350 |
| 100 | $0.84467 | $84.46700 |
| 300 | $0.77279 | $231.83700 |
| 500 | $0.70703 | $353.51500 |
| 1000 | $0.62496 | $624.96000 |
| 3000 | $0.60498 | $1814.94000 |
| 5000 | $0.58563 | $2928.15000 |
